BAMF 80" Sliders fit the double cab short bed, as well
as extra and access cabs on all trucks from 1995 to 2021. These are built to
order sliders with mutable options to choose from. You can build these how you
like, with a minimum lead time of 4 months as well as additional costs. If
you would like sliders faster, we have another part number that is built in
large batch quantities with faster lead times and a lower price (HERE).
Our bolt on design for 2005 to 2022 trucks is
100% bolt on with no drilling and is the strongest "true bolt on
available" with 6 to 8 .500" grade 8 bolts for each slider holding
them (dependent on the truck). With three no drill attachment points
on the bottom side of the frame,

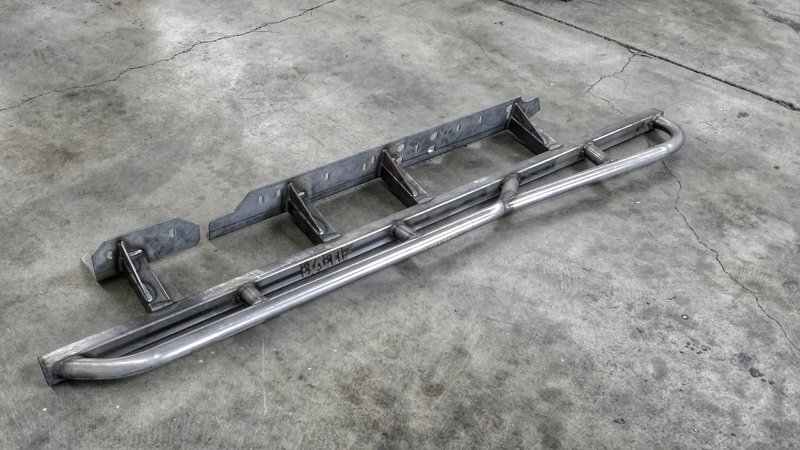

Built from 1.75" .120 US MADE DOM CNC Laser cut & notched, bent on a computer programmable tube bender and fully
welded to a CNC Laser cut 3/16th formed legs and 3/16th frame plates. With our
standard kick out, they stick out past the tire with a wheel BS of 4.5"
and a 285 wide tire.
Shipping charges will be an additional invoice sent at the time of shipping. The Shipping calculator cannot calculate shipping on sliders due to the numerous options offered. Estimated shipping to the West Coast ranges from $200 to $250, when shipped to a home address. Estimated shipping to the Mid-West and East Coast are around $300 to $400 shipped to a home address. Florida and Hawaii are similar in cost with bolt on sliders running upwards to and above the $700 range shipped to a home address.
BAMF ships via XPOLogistics "LTL Freight" for ALL sliders. They will ship directly to your home. If you have a business address it's $25 less to ship. All freight is quoted without a lift gate service. If you are unable to offload the sliders yourself from the truck, there is an additional $80 dollar lift gate fee.
find a XPOLogistics Hub click here.
These are all just base line numbers,
shipping costs will vary.
Don't know what DOM is find out here.
Now that you have a set
of BAMF 100% true bolt on sliders for the DCSB
and ACLB it's time to install them. It's very simple for two guys to install
them in under 45 minutes. If installing alone expect at least an hour
ordered bare metal sliders, you will need to coat them before installing them.
If you bought powder coated sliders, you will only need to spray the welded
washers with primer and paint so they don't rust. We don't powder coat them as
it would drive up the cost of the powder coating.
Hardware: The hardware accompanying the
sliders are listed below. Please take inventory and let us know if anything is
(2) long bars with welded nuts
(2) short bar with one nut
(14) 1/2 x 1.5" grade 8 bolts
(22) 1/2" grade 8 thick fender washers
(8) 1/2" grade 8 locking nuts
(2) 3/8th x 1.5" grade 8 bolts
(2) 3/8th grade 8 nuts
(4) 3/8 grade 8 washers
Note, some hardware is not used for
some year trucks as Toyota has removed and added holes over the years. The main
thing is that you have 3 connection points on the bottom side of the frame
which all years have these holes.
(1) 3/4" wrench
(1) 3/4" socket and wrench
(1)10mm deep lug socket 2015 + only
(1) 12mm wrench
(1) 14mm wrench
(2) 9/16 wrenches
Small screwdriver or thin
pointy object (more on that later).

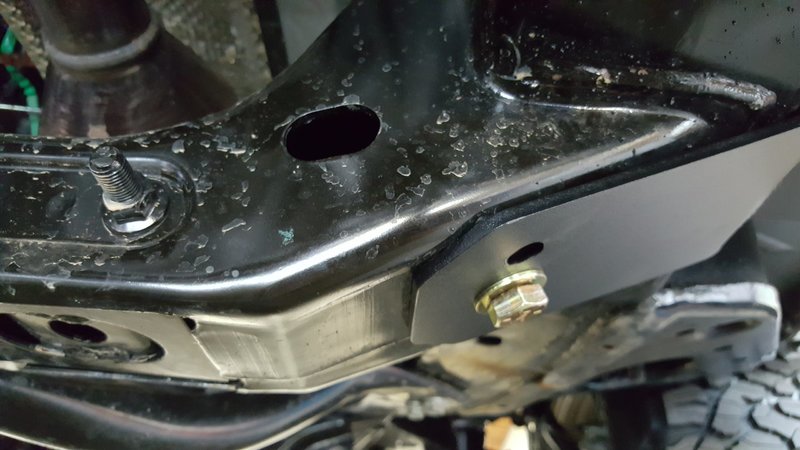

This is the first thing you need to do when
installing the sliders. You insert this into the Trans crossmember before the
sliders are set into place. You cannot install this washer with them on the

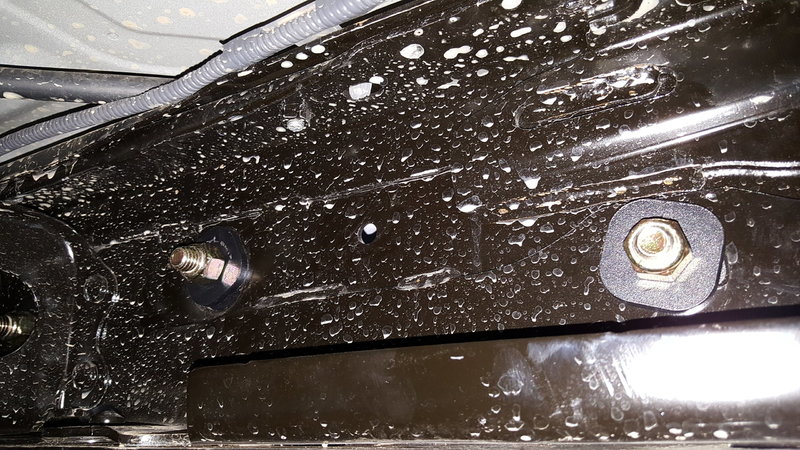

This is where the washer above is placed. Take your
screwdriver and align the nut with the hole so you can get the bolt started. If
your fingers are small enough, you can use one to help you move the washer
around in the right position. Place the bolt into the hole that fits your truck
one will be covered depending on if you have 2wd or 4wd.
The first bolt is this one on
the lower section of the frame, which is in between the carrier bearing
crossmember. Take your 14mm and remove it. Note we have seen the frame
move apart about a 1/16th when this bolt is removed, making it hard to put back
in. If this happens, you can take a ratchet strap around both sides of the
frame to pull it back. Don't try and force it in, as you can cross thread
you need to remove the bolt on the side of the frame and move the bracket out
of the way for the sliders.
picture shown is a 2016. The 2015 and some 2014's have this same box on the
passenger side frame, disregard this if you don't have this box on the outside
of the frame rail. There are two m6 bolts and two m8 bolts. Remove the m6 bolts
with the 10mm socket, then remove the two m8 bolts with the 12mm wrench.
other trucks there is one m8 bolt. Remove it with the 12mm wrench, then pull
the bracket out of the way and set the sliders into place. NOTE the
lower bolt needs to be started first. It's a tight fit once the
sliders are installed, so the lower factory bolt is installed first.
that you can reinstall the m8 bolts and bracket. If you have the black box, you
just move it forward one hole and bolt it in with only one bolt. Then place the
cover back on with the m6 bolts.
The black box with cover removed and replaced one hole
Next you need to bolt up the front leg. The frame is
boxed here, so we made a welded part with two top lock nuts on it to make your
life easier. All you need to do is get the bolts started with the bracket, then
you won't need a wrench on the back side.
Next you place a washer on the 1/2" bolts and put
them in every hole they fit into, with one of the fender washers and lock nut
on the back, leave loose until all bolts are in place.
This bracket can be removed to
fit your arm into the driver side boxed section.
On the driver side some of the brake lines are in the
way you will need to move them ever so slightly to get the nut to clear.
In addition, with the 2016, this box needs to be
removed and a bolt installed backwards in the frame with it sticking out as
shown in the pictures below.
Once all your 1/2" bolts
are in place, install the 3/8th bolt into the very rear lower hole with a nut
and washer on both sides.
NOTE the driver side is very tight
so going in from the front of the tank with your hand is the best way to do it.
You may need someone with small hands to help out. We have also noticed on the
18 and 19 models the frame has mutable stacked sheets stacked on top and is not
in line with each other, preventing the bolt from passing through the hole.
Drilling may be required to make that bolt fit.
It’s now time to tighten everything down. Start with
all three lower bolts, then continue with the remaining bolts. All the bolt
need to be good and tight, but if you must, you can torque them to the factory
bolt spec if you can locate (we are still looking for it and will update when
we can) the 1/2" bolts 80 ft lbs and the 3/8th to 33ft lbs.
Now that your sliders are installed go out and use them up as they were
